Link-14 Actuator Outputs

In the main window, click the "Off" or "On" button to set an actuator output to logic low (0 Volt) or high (5 Volt). Clicking the "edit" button will open the actuator MIDI control window.

MIDI control

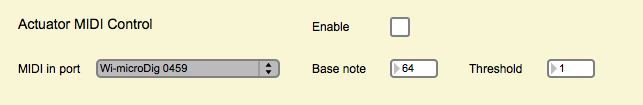

The Actuator MIDI Control window allows you to set which MIDI Note On messages received by the MIDI In Port control the actuator outputs. The Base Note value is the note number which velocity sets output 1. If the velocity is greater than or equal to the Threshold the output is turned on, otherwise it is turned off.
