This QuickStart Assumes you have installed Max already, and downloaded the iCube zip file from our website.

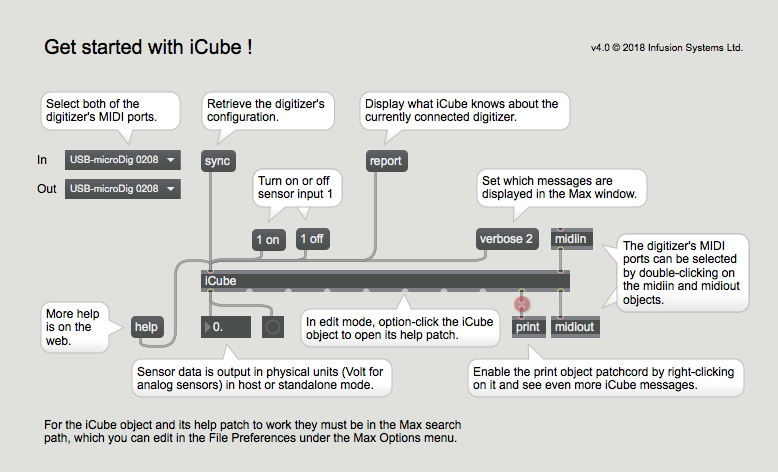

Open the iCube help Max patch and select the "get started" tab, or create a Max patch like below.


Icube-400 icube start max patch.png


  1. Select the MIDI ports to which the digitizer is connected or by which it is represented.
  2. Click "sync" and confirm the syncing process in the Max window.
  3. Plug a sensor in input 1 of the digitizer.
  4. Turn on sensor input 1 and confirm the receipt of sensor data in the number box.
  5. Follow the hints in the Max patch to explore and learn more about iCube.
