SensePlay-10 Output Audio

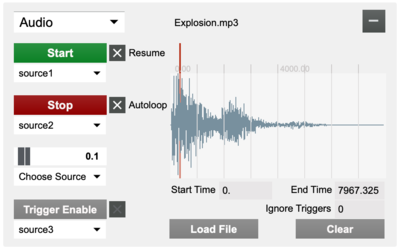

This section of the user interface enables configuration of an output as an audio file player.

Start

Click the Start button to play the media file. Select a source from the menu to allow the Start button to be triggered by sensor data. Set the Resume button to resume play instead of starting play from the beginning of the file.

Stop

Click the Stop button to immediately stop playing the media file. Select a source from the menu to allow the Stop button to be triggered by sensor data. Set the Autoloop button to continue playing from the beginning of the file once the end of the file has been reached.

Volume

Move the Volume slider to set the audio volume. Select a source from the menu to allow the Volume slider to be controlled by sensor data.

Trigger Enable

Select a source from the menu to activate the Trigger Enable function. Click the Trigger Enable button to arm, ie. allow triggering of, the Start and/or Stop button. Set/unset the button next to the Trigger Enable button to arm the Start and Stop button. For each of the Start and Stop buttons applies that if they have been triggered, the Trigger Enable button has to be triggered again first in order for them to be triggered again. For example, if the Trigger Enable button has been triggered, both Start and Stop can be triggered (Start first and then Stop, or Stop first and then Start), after which the Trigger Enable button has to be triggered again for either the Start and/or Stop buttons to be triggered.
