IoCube TD Plugin-10 Digitizer

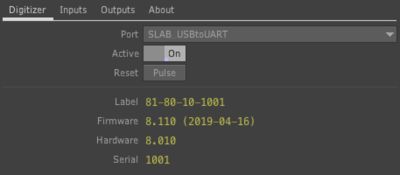

The Digitizer parameter page allows you to select the virtual serial (COM) port associated with the digitizer. When enabling "Activate", ioCube tries to communicate with the digitizer via this serial port. If ioCube establishes a connection, the digitizer's label, firmware, hardware and serial number will be shown.

If there is a second instance of ioCube running, either in your project or in another instance of Touchdesigner, make sure it is not connected to the digitizer you want to connect to with the first ioCube instance.

When ioCube establishes a connection, it switches the digitizer to host mode, which means that upon powering down the digitizer (eg. by unplugging the USB cable) its configuration will be lost - instead all settings are stored by ioCube. If the digitizer was previously configured and ioCube connects to it while it remains powered, ioCube will read the settings and display them in the parameter view as well as in the node view.

Pulsing "Reset" sets all host mode settings to default values.
