IoCube TD Plugin-10 QuickStart WiDig USB

What you need

For this walkthrough, you will need:

• A WiDig and its drivers (see below).
• A Turn (or other) sensor for testing.
• Touchdesigner software.
• ioCube.
• SiliconLabs driver.

Installing the WiDig

The WiDig is pre-configured to communicate via Bluetooth, even though it can still communicate via USB but at MIDI data rate of 31.25 kbps. Once you've successfully connected with EditorX to the WiDig you will be able to set the WiDig to communicate via USB only, at the higher data rate of 115.2 kbps.

On both Windows and MacOS, to communicate via USB, you'll first need to add the WiDig as a virtual serial (or COM) port by installing its SiliconLabs driver. If your operating system is not the most recent version, you may need to install an older driver.

On MacOS, the drivers were installed correctly if the connected WiDig is listed in System Report (under About this Mac), in the USB section under Hardware. There should be an entry "CP2104 USB to UART Bridge Controller".

On Windows, the drivers were installed correctly if the WiDig is listed under ports in the Device Manager (select from the menu that appears after right-clicking on the Start menu) as a serial port with name "COM..".

On MacOS Sierra or higher, make sure to allow the driver extension in the "Security & Privacy" panel of the System Preferences, within 30 minutes after installation (or else re-install the drivers if MacOS doesn't show a way to allow the driver).

Connecting to the WiDig

1. Connect the Turn sensor (or any other sensor) to input #1 of the WiDig as shown below, with the red wire on top and the black wire on the bottom.

2. Start Touchdesigner. Drag and drop the ioCube.tox file into the project window. Enable "viewer active" by clicking the "+" icon in the bottom-right of the ioCube node.

3. If you're running Connect, the digitizer you want to use with ioCube should be disabled in Connect. If it is enabled in Connect it'll prevent Touchdesigner from accessing the virtual serial port.

In the ioCube's parameter view's Digitizer page select the virtual serial (COM) port that is associated with the WiDig, and then enable "Activate". On MacOS the virtual serial port will be called "SLAB...". On Windows the COM port can be determined by checking the list of ports in the device manager.

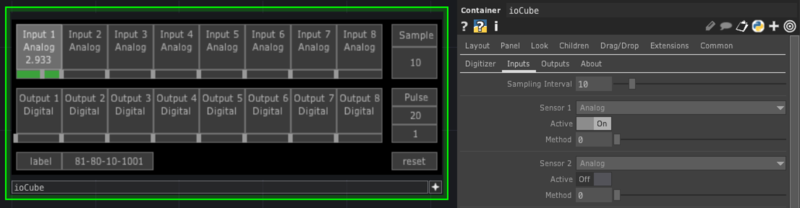

4. In the node view click the "Input 1" button or in the parameter view's Inputs page enable the "Active" button of sensor 1 to turn on sampling of sensor input 1. In the node view the button will turn green and the sensor value will be shown as a number as well a slider.

5. You're up and running. For further details about using ioCube, refer to the ioCube help pages.
