SensePlay-10 Output Sequence

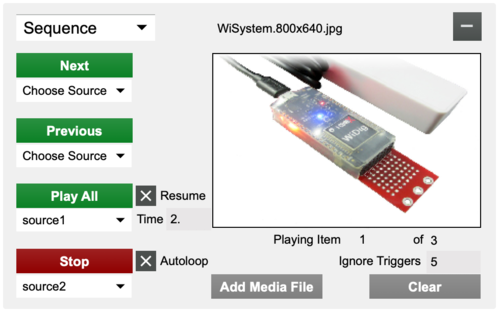

This section of the user interface enables configuration of an output as an image/video sequence player.

Select the top left menu to change the block to an Audio or Video output.

Click the "-" button in the top right to delete the block. Click the "+" button to add a new output.

Press ESC (escape) to display the video fullscreen.

File

The video file player accepts typical formats like JPG, PNG, PICT, TIFF, MOV, MPG (MacOS only) and AVI. Files can be dropped on the graphical display or selected using the Load File button. The Clear button removes the file and resets the player to default. The name of the currently playing file is displayed at the top of the block.

Next/Prev

Click the Next or Prev button to play the next or previous media file in the sequence. Select a source from the menu to allow the Next or Prev button to be triggered by sensor data.

Play All

Click the Play All button to play all media files sequentially. Select a source from the menu to allow the Play All button to be triggered by sensor data. Set the Resume button to resume play instead of starting play from the beginning of the sequence. The Time field sets the number of seconds an items should be played before the next item should be played.

Stop

Click the Stop button to immediately stop playing the media file sequence. Select a source from the menu to allow the Stop button to be triggered by sensor data. Set the Autoloop button to continue playing from the beginning of the sequence once the end of the sequence has been reached.

Ignore Triggers

This feature sets the number of seconds to ignore subsequent triggers for any of the buttons.
