SensePlay-10 Source Control

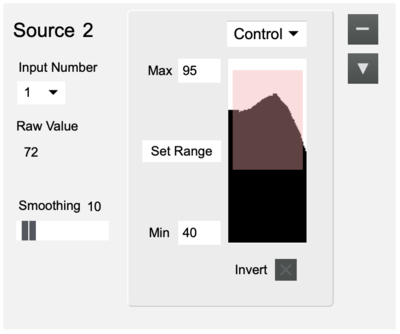

This section of the user interface enables configuration of a source as a control using data from a sensor input of the digitizer.
Click the "-" button in the top right to delete the source block. The button below it minimizes the block. Click the "+" button to add a new source.
Contents
Input
A number has to be selected from the Input Number menu in order for the digitizer to be configured to send the sensor data. The raw sensor data is shown as well.
Smoothing
The Smoothing slider filters the sensor data, removing spikes and noise using exponential averaging. It functions as a low-pass filter which can be used to detect cumulative activity, ie. triggering only after many frequent peaks in the sensor data have occurred.
Range
The Min and Max values set the range within which output values are sent to the listening outputs. The Set Range (in semi-transparent red) sets the range based on the maximum and minimum values received from the sensor input. The selected range is scaled to the range of the listening output(s).
Invert
The Invert button sets whether the sensor value is directly or inversely related to the value sent to the listening outputs.
