Widig-801 QuickStart iOS

From I-CubeX Wiki
Jump to: navigation, search

The instructions below show the BLE MIDI connection procedure in GarageBand, but any other CoreMIDI enabled application will have a similar menu for pairing to BLE MIDI devices.


GarageBand Specific Menu

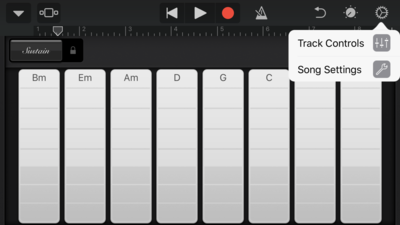

1. In GarageBand, from an instrument window, click on the gear icon on the top right and select Song Settings:

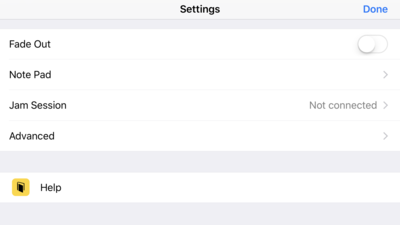

2. Then, scroll down the menu and select "Advanced":

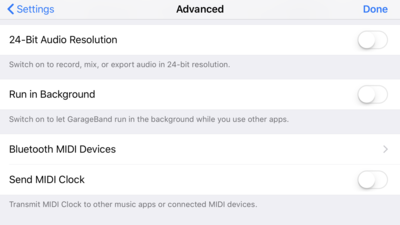

3. From there, select Bluetooth MIDI devices




Connect to the BLE MIDI Port

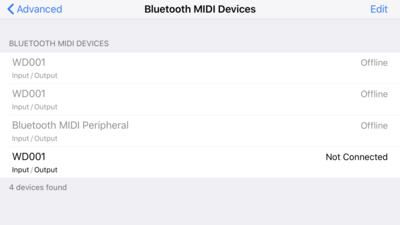

4. Finally, connect to the WiDig by selecting it from the list of devices:

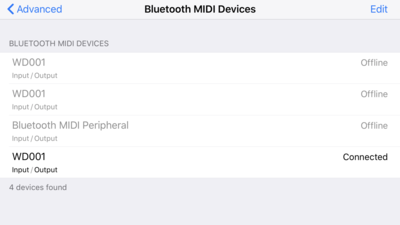

5. The WiDig is now connected! You can now press < back and start using the WiDig with GarageBand!
